Name: TR40 Super Mini Hidden 2G GPS Tracker Wholesale | OEM
Brand: GreatWill

Super Mini GPS Tracker TR40 | GreatWill

Great Will GPS tracker suitable for a variety of vehicles.Great Will GPS tracking devide, with its popular compact design and stable 2G network support, can accurately implement basic real-time tracking functions, while also tracing back historical driving routes, meeting users’ core needs for vehicle location monitoring and providing a cost-effective solution for personal vehicle management or small fleet tracking.

Wide Working Voltage 9-90V

Ultra-compact size:38*19*14mm&Weight:26g

Have questions? We're here to help.

Super-Mini Concealed Vehicle Tracking — TR40

TR40 is a compact 2G wired GPS tracker with GPS + LBS positioning, IP68 protection, a wide DC 9–90V input and a heat-shrink sealed design for concealed installation in motorcycles, passenger vehicles and fleet applications.

Wide Operating Temperature

TR40 is specified for operation from -40°C to +70°C, helping maintain tracking performance across cold outdoor environments and hot vehicle installations.

IP68 Waterproof Protection

The IP68-rated sealed design provides high resistance to dust and water intrusion for demanding vehicle and outdoor tracking environments.

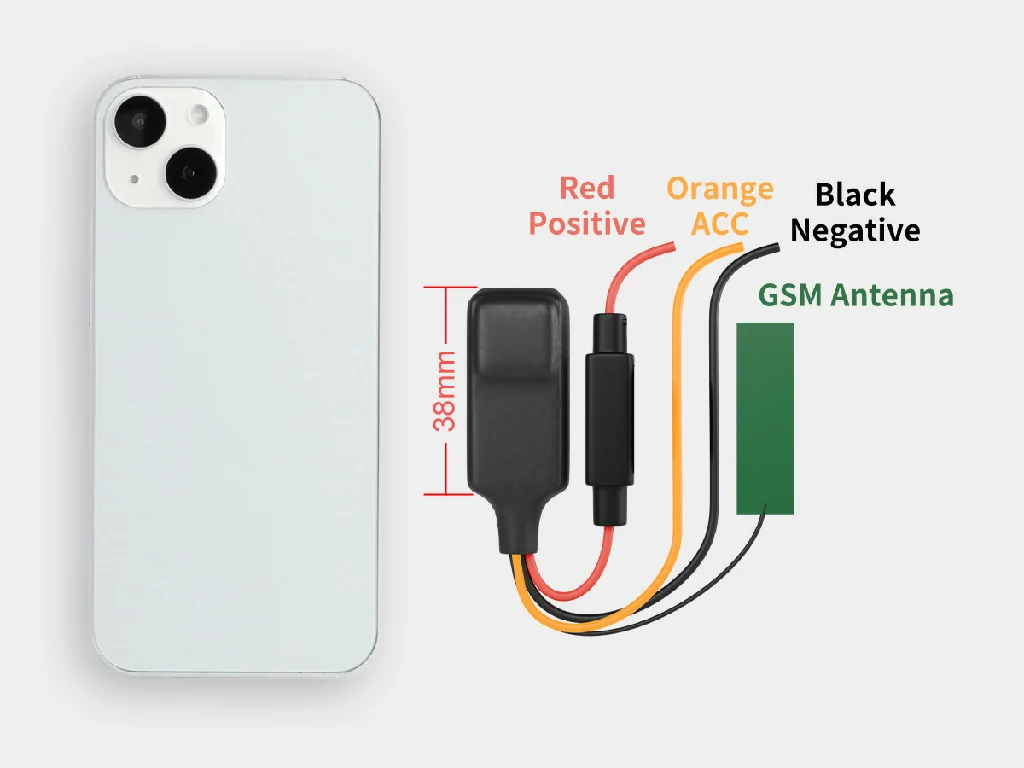

Heat-Shrink Concealed Installation

A compact heat-shrink sealed exterior helps the tracker fit into hidden vehicle locations where installation space is limited and visual concealment is important.

Multiple Application Scenarios

The small sealed tracker can be installed in motorcycles, passenger cars and fleet vehicles, and can also support vehicle-financing, rental and anti-theft monitoring projects.

Technical Specifications

Specification	TR40
Network	2G GSM 850/900/1800/1900MHz
Working Voltage	DC 9V–90V
Dimensions	38mm × 19mm × 14mm
Location Accuracy	5–10 Meters
Positioning	GPS + LBS
Working Current	Working ≈38.5mA; Sleep ≈11.2mA
Backup Battery	Built-in Polymer Battery
Working Temperature	-40°C to +70°C (-40°F to 158°F)
G-Sensor	Built-in 3-axis Accelerometer
Ingress Protection	IP68

Main Features

Real-Time Tracking

Geo-Fence

ACC Detection

IP68 Waterproof

DC 9–90V

TR40 Applicable Scenarios

Fleet Management

Motorcycle Outdoor Riding

Rental / Loan Vehicles

Bulk GPS Tracking Devices Ready-to-Ship

GreatWill supplies TR40 compact wired GPS trackers for fleet, motorcycle, rental, financing and vehicle-security projects, with OEM/ODM customization available.

After-sales technical support and product testing are available.
Configurations can be adjusted for local networks, vehicles and project requirements.
Warranty coverage can be up to 3 years depending on the project and commercial agreement.

Sample delivery is typically about 3–5 days.
Large-volume orders generally require more than 7 days depending on quantity and customization.
Devices, platform software and SIM/IoT-card configurations are inspected before shipment.
Multiple shipping methods are supported.

The 38 × 19 × 14mm enclosure supports highly concealed installation in limited spaces.
IP68 protection supports use in dusty, wet and demanding outdoor environments.
DC 9–90V input suits many motorcycles, passenger cars and fleet vehicles.
A heat-shrink sealed exterior provides a compact and flexible form for project-specific installation.
