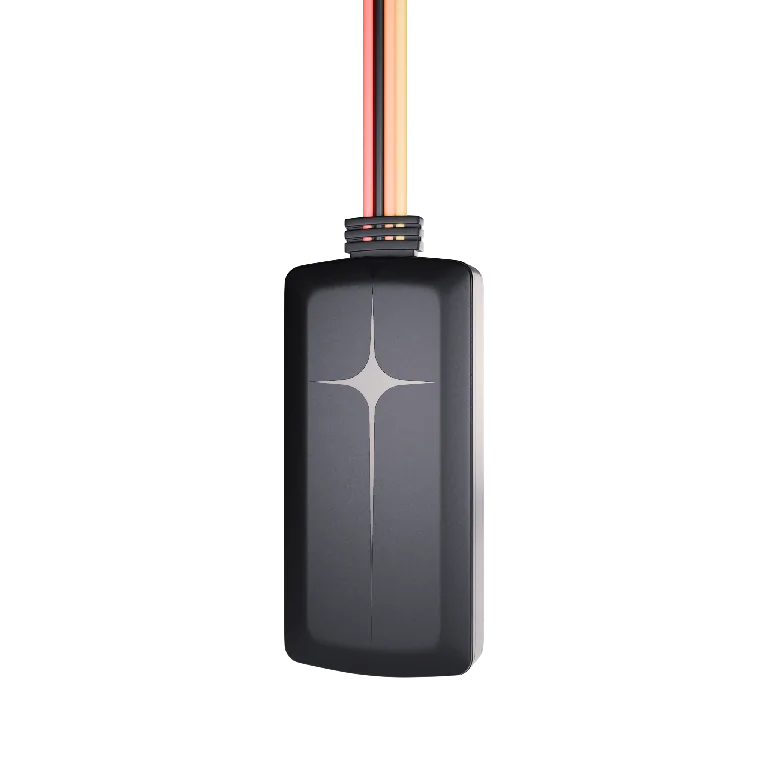

Positioning Terminal, Wired Equipment — GT24H
GreatWill GT24H is a wired 4G+2G GPS tracker. Equipped with AT6558R chip, it has higher positioningaccuracy. Great Will product has real-time positioning, track playback and many alarm functions.including overspeed alarm, vibration alarm, low battery alarm, etc. This product has becomethe best choice for customers with its extremely high safety

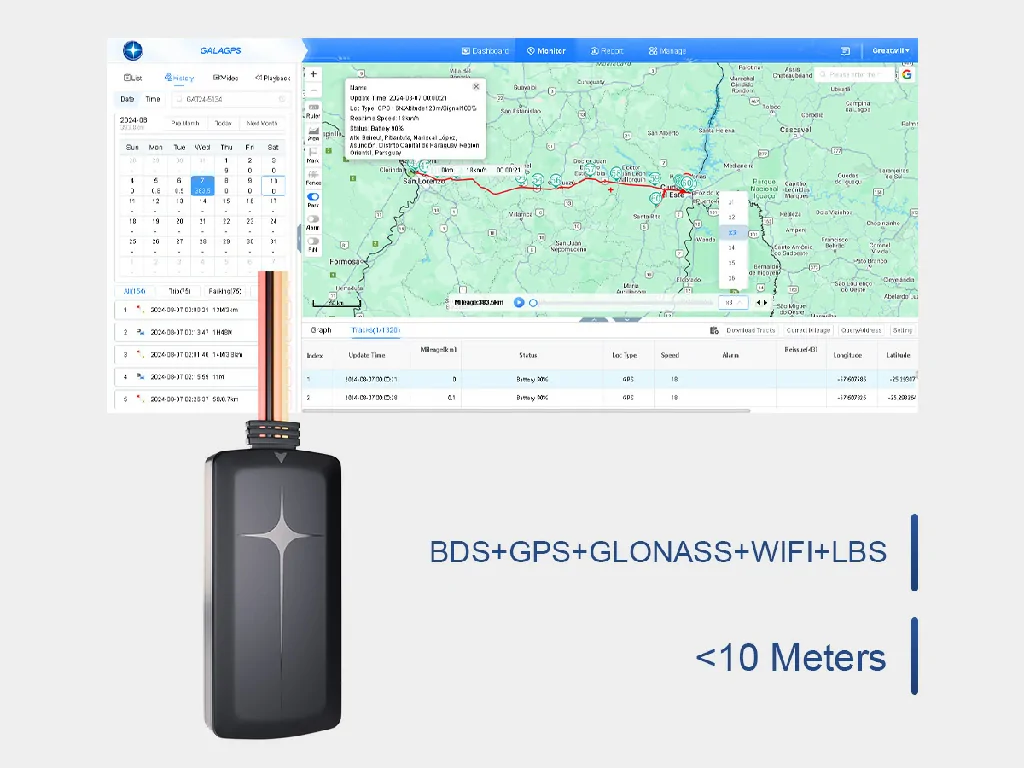

Real-time Positioning and Tracking
Equipped with a high-performance smart chip and multi-mode positioning module, and powered by a 2G+4G dual-mode network, it leverages the 4G network for high-speed transmission of location information, ensuring accurate and timely real-time positioning. It can also maintain connectivity via the 2G network in areas with weak 4G signals. Combined with a multi-system positioning module, it can stably capture location information even in complex environments, providing reliable data support for vehicle tracking

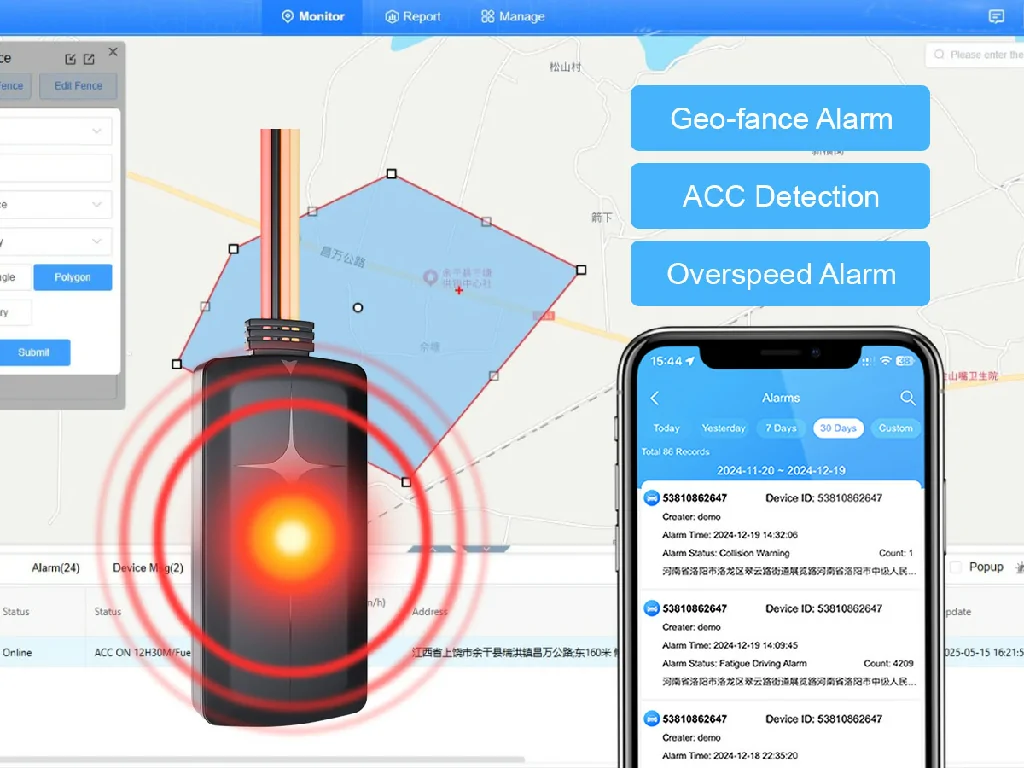

Multiple Alarm Systems
When the vehicle’s speed exceeds a preset limit, an overspeed alarm is immediately triggered, helping to regulate driving behavior. When the device’s internal battery is low, a low-battery alarm promptly reminds the user to recharge the battery, preventing loss of monitoring due to power outages. A vibration alarm quickly responds to abnormal vehicle vibrations (such as prying or collisions), preventing theft. The ACC detection function monitors the vehicle’s ignition status in real time, accurately determining whether the vehicle is running or off
Remote Control
The GT24H supports remote engine shutdown via SMS commands sent via the monitoring platform or app. This function, an important risk control measure, can be activated in special situations such as vehicle theft or lease expiration, quickly controlling the vehicle’s status and minimizing the risk of asset loss. However, it should be noted that this function should be used legally, compliantly, and safely to avoid dangerous operations on a moving vehicle
Technical Specifications
| Specification | GT24H |
|---|---|
| Network | 4G LTE Cat-1 + 2G GSM |
| Working Voltage | DC 9V – 90V |
| Dimensions | 80mm * 37mm * 15mm |
| Location Accuracy | <10 Meters |
| Positioning Way | BDS + GPS + GLONASS + WIFI + LBS |
| Working Current | <30mA @ 12V |
| Standby Battery | 55mAh |
| Working Temperature | -20°C to +70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Vibration Alarm | Supported (Built-in Accelerometer) |
| Blind Spot Storage | Supported |
| Warranty | 12+ Months |
Main Features
Real-Time Tracking
Geo-Fence
ACC Detection
Remote Cut-Off
DC 9-90V
GT24H Wired GPS Locator 4G+2G Applicable Scenarios
Motorcycle Fleet Management
Vehicle Tracking Management
Auto Finance Rental
Bulk GPS Tracking Devices Ready-to-Ship
GREAT-WILL specializes in GPS tracker wholesale. We maintain a regular stock of market-proven devices to quickly fulfill orders for vehicle trackers, asset trackers, and heavy equipment monitors. We support OEM/ODM and customization services. Whether for your own business or for resale, the GT24H offers exceptional quality and value.
- Provide after-sales technical support and product testing
- Continuously adjust products to suit local conditions and vehicles
- Warranty period up to 3 years
- Sample delivery time is approximately 3-5 days.
- Large-volume orders take over 7 days.
- The device/platform software/SIM/IoT card undergo engineering inspection and testing before packaging and shipment.
- Multiple shipping methods supported.
- The GT24H tracker integrates multi‑GNSS positioning modules with 2G/4G cellular networks to deliver accurate, real‑time positioning across complex environments. Fleet managers can view precise vehicle locations and driving status anytime via the platform or mobile app, enabling timely dispatch and improved operational efficiency.
- GT24H includes multiple alarm types — overspeed, low battery, and vibration — tailored for fleet protection. For motorcycle fleets, the vibration alarm offers effective tamper/theft detection: the device issues an immediate alert on abnormal vibration patterns such as tampering or collision. The overspeed alarm helps managers enforce safe driving and reduce speed‑related risks.
- The GT24H supports remote fuel and power shutoff, allowing managers to disable a vehicle’s engine remotely via the platform or mobile app (SMS or data commands). In case of theft or lease expiration, remote shutoff prevents unauthorized use and mitigates asset loss. Administrators can also create custom geo‑fences to define permitted driving and parking zones; the tracker sends instant alerts when a vehicle enters or leaves a designated area, enabling tighter control over vehicle movements.
