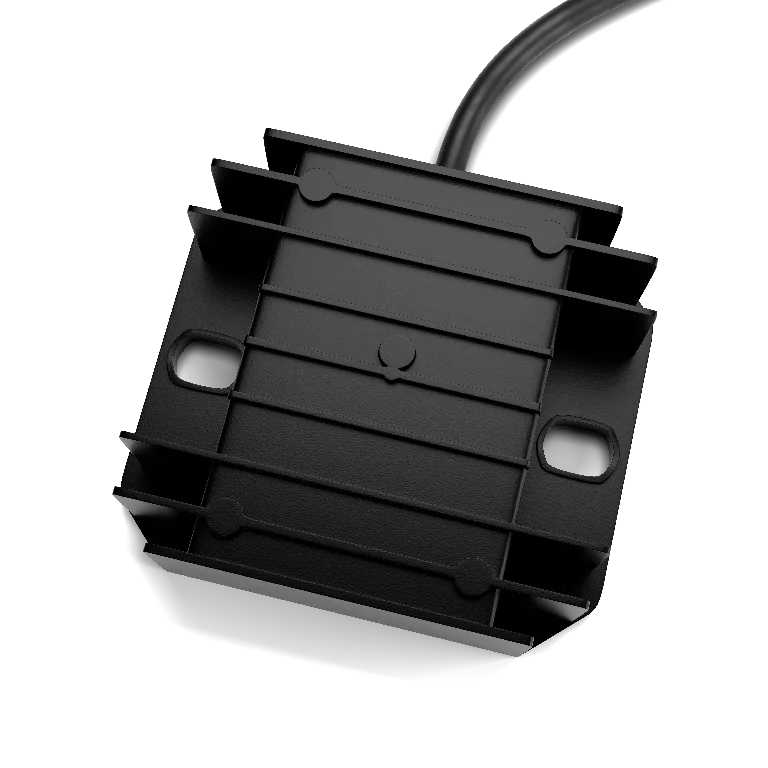

Disguised as a Rectifier — TR10W
TR10W is a mini-sized GPS tracker. It innovatively combines the relay and GPStracker into one, with super high camouflage performance and positioning function. It has the features of real-time positioning, track playback, ultra-wide voltage, etc., and is very suitable for use on motorcycles and cars.
A particularly striking design.
The camouflaged GPS tracker achieves “covert monitoring” by mimicking the appearance of everyday objects (such as motorcycle rectifiers, vehicle chargers, screws, and ornaments). This effectively protects the device from damage or removal, ensuring continued positioning functionality and significantly improving the reliability of anti-theft and tracking.
Compatible with multiple scenarios (9-90V).
Never lose critical footage. The GD09 automatically uploads event-triggered videos (e.g., collisions) to the cloud, with 1 day of free rolling storage, ensurThe camouflaged design allows for flexible integration into various scenarios, eliminating the need for concealed installation (e.g., drilling or wiring), maintaining the original structure, and avoiding arousing suspicion due to its unobtrusive appearance. For motorcycle anti-theft applications, it can be disguised as a rectifier or junction box, adapting directly to the vehicle’s circuitry.ing evidence is secure even if the device is damaged or the TF card is lost.
Technical Specifications
| Specification | TR10W |
|---|---|
| Network | GSM 850/900/1800/1900 MHz |
| Working Voltage | DC 9V – 90V |
| Dimensions | 70mm * 59mm * 29mm |
| Location Accuracy | <10 Meters |
| Positioning Way | BDS + GPS + LBS |
| Working Current | <50mA @ 12V (Sleep Current: <1.5mA) |
| Standby Battery | 70mAh |
| Working Temperature | -20°C to +70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Waterproof Rating | IP67 |
| Blind Spot Storage | ~3,000 data points |
| Remote Upgrade | Supported (OTA) |
Main Features
Real-Time Tracking
Relay Included
IP67 Waterproof
Vibration Alarm
DC 9-90V
TR10W GPS Tracker Applicable Scenarios
Ride-hailing/car-sharing
Motorcycle/electric vehicle-specific
Freight/logistics vehicles
Bulk GPS Tracking Devices Ready-to-Ship
GREATWILL specializes in GPS tracker wholesale. We maintain a regular stock of market-proven devices to quickly fulfill orders for vehicle trackers, asset trackers, and heavy equipment monitors. We support OEM/ODM and customization services. Whether for your own business or for resale, the TR10W offers exceptional quality and value.
- Provide after-sales technical support and product testing
- Continuously adjust products to suit local conditions and vehicles
- Warranty period up to 3 years
- Sample delivery time is approximately 3-5 days.
- Large-volume orders take over 7 days.
- The device/platform software/SIM/IoT card undergo engineering inspection and testing before packaging and shipment.
- Multiple shipping methods supported.
- Different Appearance

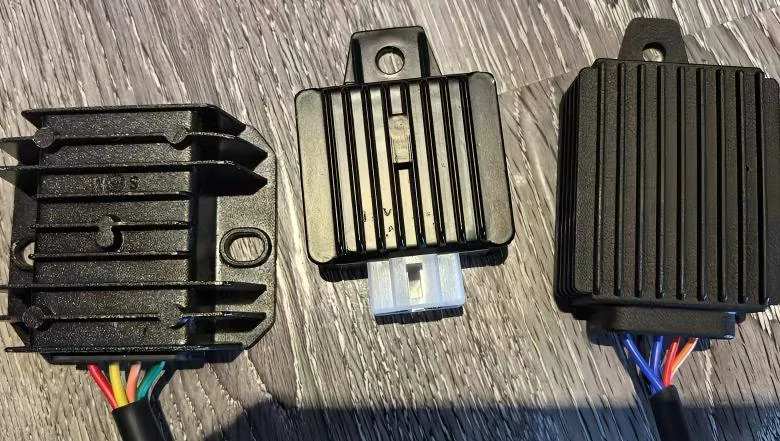

Ordinary GPS trackers usually have a distinct device appearance, such as the common rectangular shape, and may be equipped with components like antennas and indicator lights. In contrast, the motorcycle rectifier-disguised GPS tracker fully imitates the appearance and size of a real motorcycle rectifier. Its shape, color, and interfaces are highly similar to those of an authentic rectifier, allowing it to blend seamlessly into the original components of the motorcycle. This gives it extremely high concealment, making it difficult to be detected and removed. - Different Detection Resistance and Anti-Removal Capability
Ordinary GPS trackers may adopt simple methods to prevent removal, such as setting up anti-removal alarm functions. However, due to their obvious appearance, they are easily detected and damaged in advance by criminals. Thanks to its disguise feature, the motorcycle rectifier-disguised GPS tracker first avoids being directly identified as a GPS tracker in terms of appearance. Secondly, its internal structure may adopt a special design, making the removal process more difficult. At the same time, combined with functions like anti-removal alarms, it can better protect itself from being removed, thereby continuing to perform its positioning function. - Different Environmental Adaptability and Stability
The motorcycle rectifier-disguised GPS tracker needs to adapt to the complex operating environment of motorcycles, such as high temperatures, vibrations, and humidity. Therefore, greater emphasis is placed on high-temperature resistance, shock resistance, and waterproof performance in material selection and manufacturing processes to ensure stable operation even under harsh environmental conditions. Although ordinary GPS trackers also take environmental adaptability into account, their targeting for the special environment of motorcycles is not as strong as that of the motorcycle rectifier-disguised GPS tracker. - Different Function Integration
In addition to basic positioning functions, the motorcycle rectifier-disguised GPS tracker may also integrate functions related to motorcycle rectifiers, such as power regulation and overload protection. This ensures that while realizing the positioning function, it does not affect the normal operation of the motorcycle and may even play a certain protective role in the motorcycle’s electrical system. In contrast, ordinary GPS trackers usually focus only on positioning and related alarm functions. - Different System Stability Enhancement
The built-in relay design of the disguised GPS tracker reduces external wiring, lowering the probability of malfunctions caused by issues like loose wiring or short circuits, and improving the stability and reliability of the entire positioning system. At the same time, some trackers are also equipped with backup batteries. When the external power supply is cut off, the backup batteries can continue to supply power to the relay and positioning module, ensuring the continuous effectiveness of positioning and control functions.
