Smart Terminal, High-Precision Positioning — GT22
GT22 supports real time positioning, track playback and multiple alarmfunctions. Among them, the most prominent ones are sudden acceleration,sudden deceleration and sudden braking alarms. Provide solid protection foryour vehicle safety

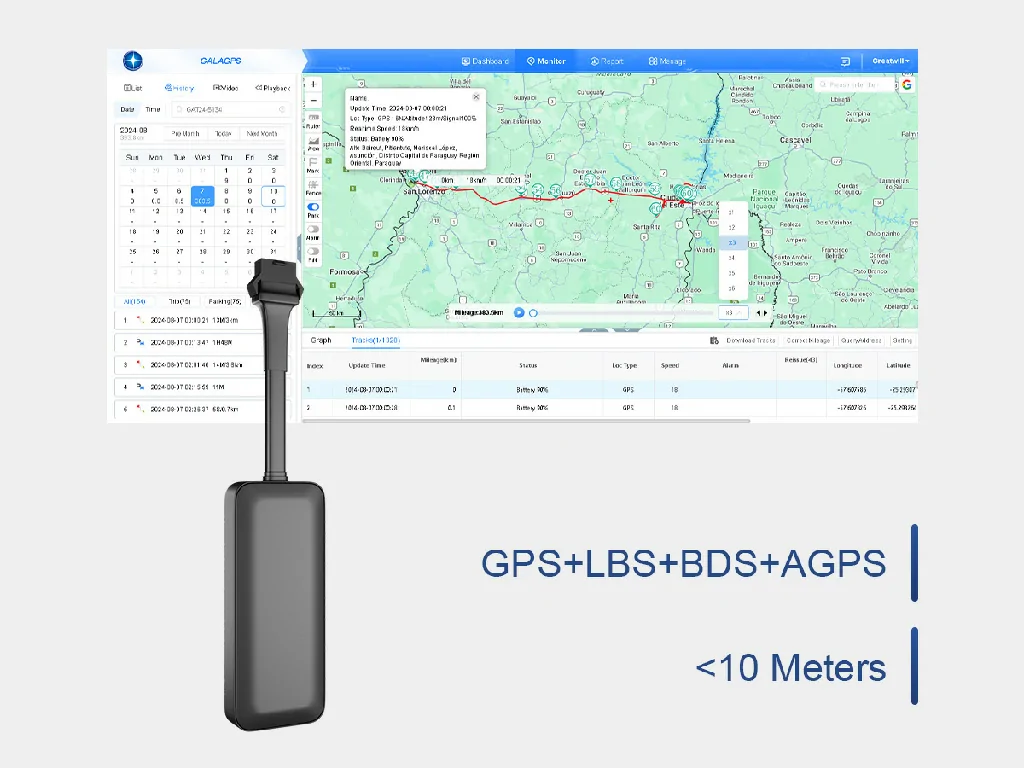

Real Time Tracking Positioning
Supporting 4G+2G communication networks, and utilizing multiple positioning modules including GPS, LBS, BDS, and AGPS, the tracker can quickly and accurately determine its location in various environments, with a positioning accuracy of 5-10 meters. Users can view the tracker’s location information in real time via mobile apps, computers, and other platforms

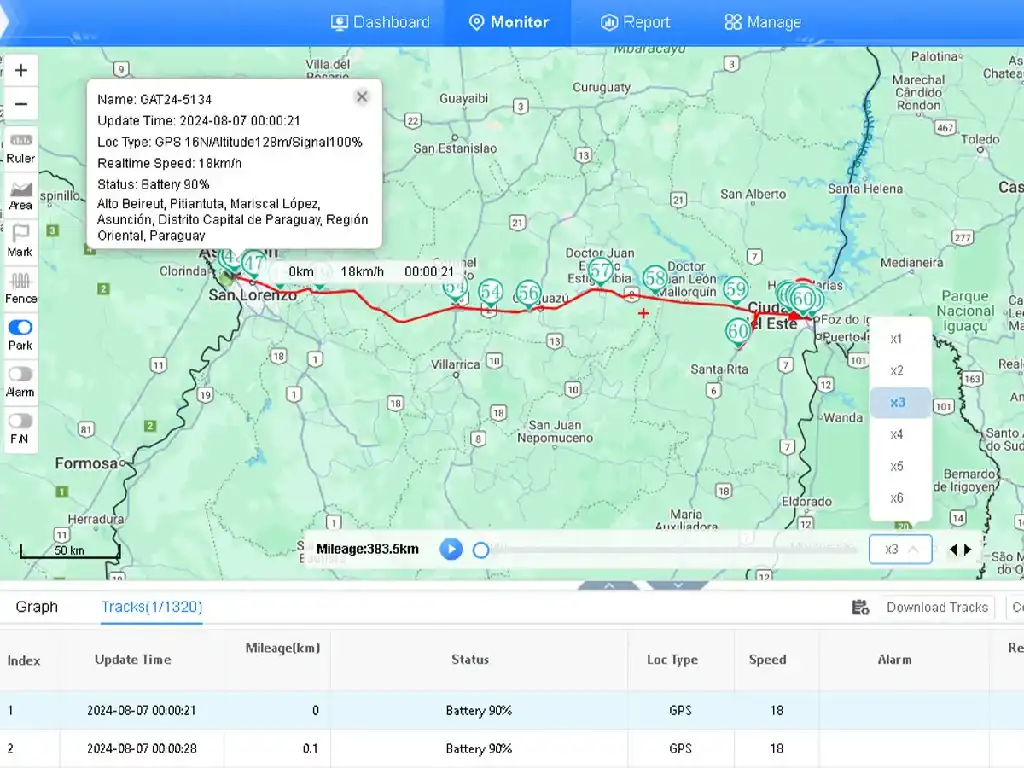

Historical Playback Trajectory
Three months of historical tracking data can be saved. Users can replay the tracker’s movement trajectory over a period of time on relevant platforms to understand its past travel and activity range, facilitating trip analysis and management
Remote Control Engine
By connecting to the vehicle’s electrical or oil system, users can remotely start or stop the vehicle’s engine by sending commands via a mobile app or other control terminal. This feature can be used to prevent theft. If the vehicle is stolen, the owner can remotely cut off the engine power, rendering it unable to drive
Vibration Alarm System
With a built-in vibration sensor, if the vehicle or tracker experiences abnormal vibrations, such as unauthorized contact or movement, the tracker will immediately send a vibration alarm to the user’s phone, alerting them to the safety of the vehicle or belongings
Technical Specifications
| Specification | GT22 |
|---|---|
| Network | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900MHz |
| Location Technology | GPS + LBS + BDS + AGPS |
| Location Accuracy | <10 Meters |
| Working Voltage | DC 9V – 90V |
| Working Current | approx. 30mA @ 12V |
| Backup Battery | 55mAh / 3.7V Industrial-grade Lithium Polymer |
| Dimensions | 79mm * 33.3mm * 12.5mm |
| Working Temperature | -20°C to +70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Communication Module | A7670 Series |
| Location Module | AT6558R |
| Warranty | 12+ Months |
Main Features
Real-Time Tracking
Blind Spot Storage
Vibration Alarm
Remotely Control Engine
DC 9-90V
GT22 Wired GPS Tracker 4G+2G Applicable Scenarios
Commercial Fleet Management (Ride-hailing/Vans)
Freight Security Control
Valuable Equipment Tracking
Bulk GPS Tracking Devices Ready-to-Ship
GREATWILL specializes in GPS tracker wholesale. We maintain a regular stock of market-proven devices to quickly fulfill orders for vehicle trackers, asset trackers, and heavy equipment monitors. We support OEM/ODM and customization services. Whether for your own business or for resale, the GT22 offers exceptional quality and value.
- Provide after-sales technical support and product testing
- Continuously adjust products to suit local conditions and vehicles
- Warranty period up to 3 years
- Sample delivery time is approximately 3-5 days.
- Large-volume orders take over 7 days.
- The device/platform software/SIM/IoT card undergo engineering inspection and testing before packaging and shipment.
- Multiple shipping methods supported.
- Multi-network + Multi-module Compatibility
- It supports both 4G and 2G communication networks and GPS, LBS, BDS, and AGPS positioning modules, ensuring signal availability in diverse environments. For example, in areas with weak GPS signals, such as underground garages, LBS can be used for auxiliary positioning. In areas with poor 4G coverage, it automatically switches to the 2G network to avoid positioning interruptions.
- Multi-mode positioning technology, with an accuracy of 5-10 meters, accurately reports the exact location of vehicles or objects, providing an effective location reference for both routine monitoring and tracking stolen assets.
- Active Warning + Remote Control
- A built-in vibration sensor triggers an immediate alarm when the vehicle or object is illegally touched, allowing users to immediately detect any anomalies and prevent further losses.
- It supports remote engine control. If a vehicle is stolen, users can remotely shut down the engine via the app, preventing the vehicle from moving, significantly increasing the success rate of anti-theft measures.
- Wide Coverage + High Flexibility
- It meets the needs of individuals and businesses, vehicles and valuables. It is suitable for personal car theft prevention and family car monitoring, as well as corporate fleet scheduling and freight security management. It can also be used for valuable equipment tracking. There is no need to purchase separate equipment for different scenarios, which is more cost-effective.
