Portable None Installation，High Accuracy Positioning–GAT20
GAT20 is a 4G positioning terminaldesgned specificaily for asset cargo transportation management. It has built-in light sensing, temperatureand humidity, and adopts a card-typedesign. The body is compact and easy to place in more application scenarios

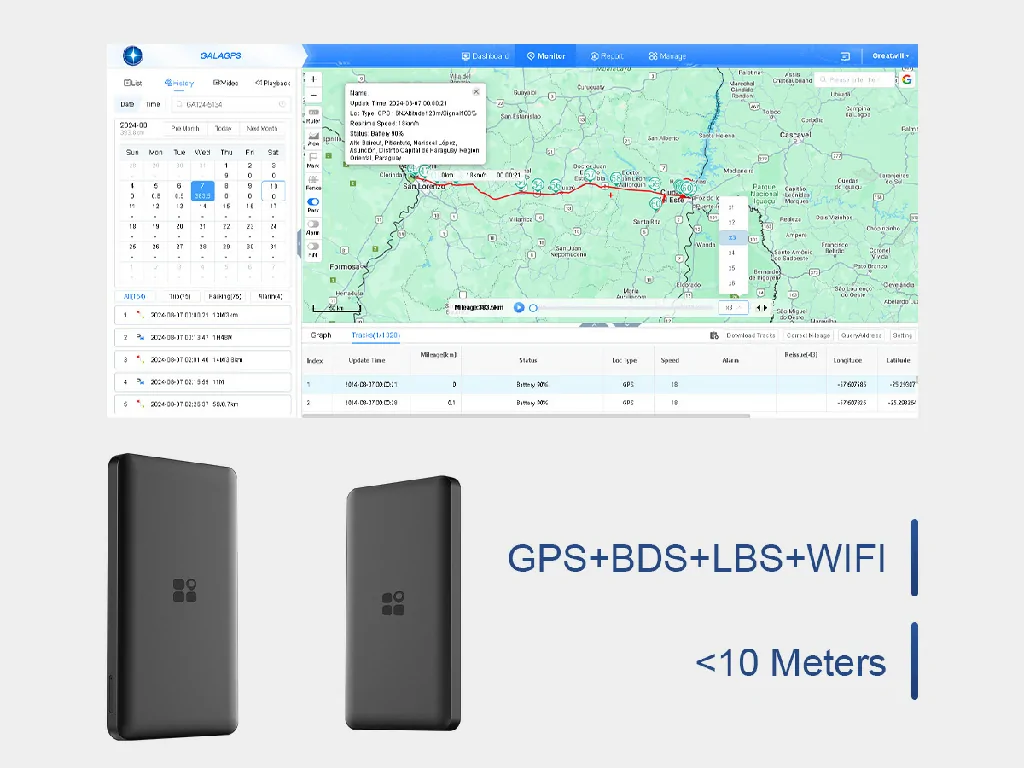

Strong Precision Positioning Capabilities
Supporting GPS/AGPS/Beidou positioning, as well as Wi-Fi/cellular/Bluetooth positioning, this combination of multiple positioning methods ensures accurate positioning in diverse environments with minimal error. For example, in urban areas with dense buildings, Wi-Fi and cellular positioning can complement satellite signals. In open areas outdoors, GPS and Beidou positioning are primarily used for precise positioning

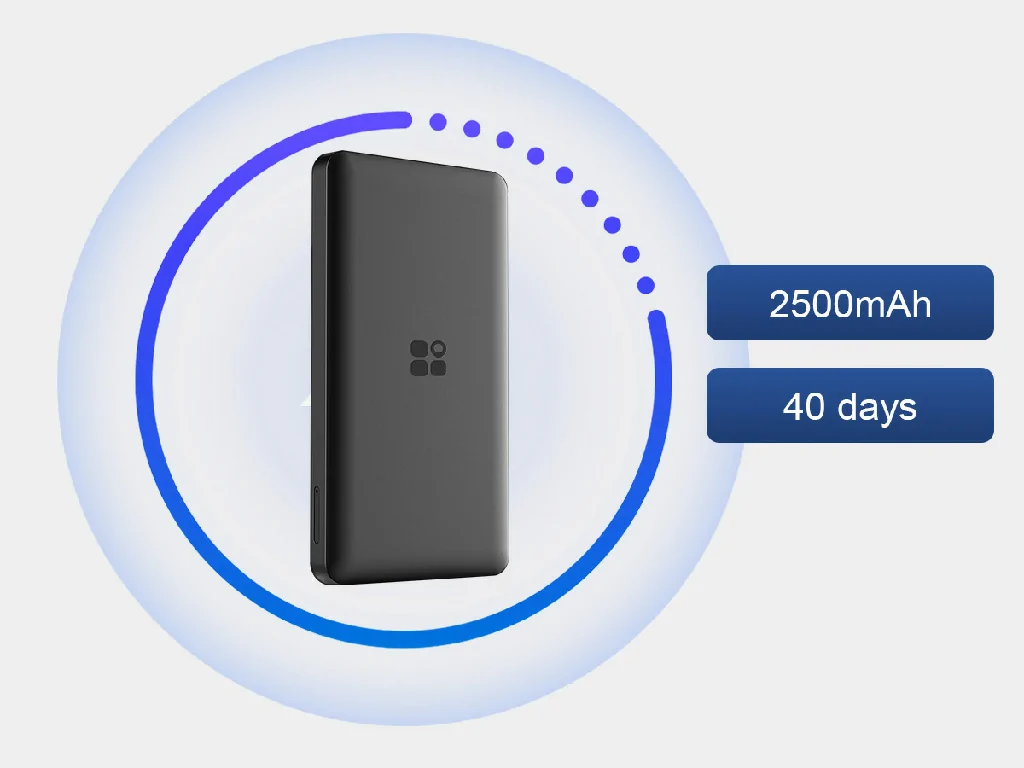

Excellent Battery Performance
The built-in 2500mAh/3.7V industrial-grade lithium polymer battery features a low-power design and exceptionally long battery life. This allows the device to operate without charging for extended periods, making it particularly suitable for scenarios requiring continuous positioning, such as vehicle tracking and asset tracking. This reduces the need for frequent charging and improves the device’s ease of use and reliability

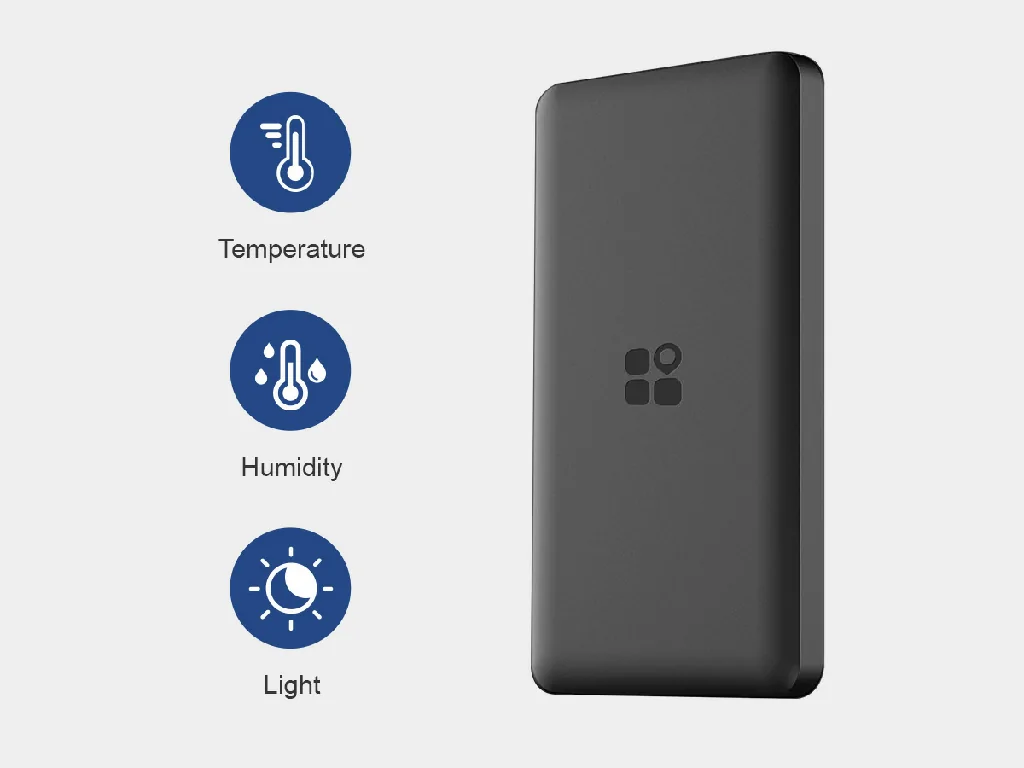

Comprehensive Sensor Configuration
For example, in logistics, temperature and humidity sensors can monitor temperature and humidity changes in the transport environment to ensure the quality and safety of goods. Accelerometers and gyroscopes can monitor vehicle acceleration, deceleration, and cornering, enabling analysis of driving behavior and preventing damage to goods from severe vibration during transport
Tamper & Condition Alerts
The built-in light sensor triggers an alert when the package is opened. An optional gyroscope can detect shocks and rolls, providing warnings for rough handling to safeguard your assets
Technical Specifications
| Specification | GAT20 |
|---|---|
| Network Frequency | 4G LTE Cat-1 |
| Standby Battery | 2500mAh / 3.7V |
| Dimensions | 112.5mm * 62mm * 11mm |
| Location Accuracy | <10 Meters |
| Positioning Way | GPS + BDS + Wi-Fi + LBS + Bluetooth |
| Charging Time | ≈ 4 Hours |
| Weight | 86g |
| Working Temperature | -20°C to +70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Sensors | Accelerometer, Light Sensor |
| Bluetooth | BLE 5.0 |
| FOTA Remote Upgrade | Supported |
Main Features
4G Global Network
Temp & Humidity Monitoring
Tamper Alert
Extended Battery Life
Bluetooth 5.0
GAT20 GPS Tracker Applicable Scenarios
Logistics And Transportation Vehicles
Important Item Tracking
Asset monitoring and management
Bulk GPS Tracking Devices Ready-to-Ship
GREATWILL specializes in GPS tracker wholesale. We maintain a regular stock of market-proven devices to quickly fulfill orders for vehicle trackers, asset trackers, and heavy equipment monitors. We support OEM/ODM and customization services. Whether for your own business or for resale, the GAT20 offers exceptional quality and value.
- Provide after-sales technical support and product testing
- Continuously adjust products to suit local conditions and vehicles
- Warranty period up to 3 years
- Sample delivery time is approximately 3-5 days.
- Large-volume orders take over 7 days.
- The device/platform software/SIM/IoT card undergo engineering inspection and testing before packaging and shipment.
- Multiple shipping methods supported.
- Extremely long battery life/multiple application scenarios
- For applications such as vehicle tracking and asset tracking, customers expect the built-in 2500mAh/3.7V industrial-grade lithium polymer battery to deliver exceptional battery life, reducing the hassle of frequent charging and ensuring long-term stable operation. They also seek alarm functions such as vibration, displacement, and overspeed warnings, and the ability to utilize multiple sensors like optical and accelerometers to meet the needs of diverse scenarios, such as cargo status monitoring in logistics and tracking track data during outdoor activities.
- Easy Installation/No-Installation Wireless Devices
- Choosing a tracker with easy installation requires no specialized tools or skills, reducing installation costs and complexity, saving time and effort.
- Real-Time Positioning and Tracking/High Precision with Low Error
- By combining multiple positioning methods, including GPS, AGPS, and Beidou, high-precision positioning is achieved in all environments, with the smallest possible error, ensuring accurate positioning of the target.
