Name: GT24N 4G Wired GPS Tracker Manufacturer | Great Will
Brand: GreatWill

4-Wire 4G Wired GPS Tracker GT24N | GreatWill

Great Will GT24N is a wired GPS tracker with dimensions of 80mm??37mm??15.4mm, equipped with the GX306 + AT6558R/HD8122 hardware platform. It supports multi-mode satellite positioning, with a positioning error of ??10M, and features 4G-LTE-CAT1 network communication capability. It comes with various alarm functions including overspeeding, vibration, and low battery alerts, and supports fuel/power cut-off and ACC ignition detection.

Supports Fuel/power Cut-off and Recovery

Equipped with Vbration Sensor

Positioning Systems: GPS/BDS/GLONASS & WiFi & LBS

Have questions? We're here to help.

Safe, Controllable 4G Vehicle Tracking — GT24N

GT24N is a hardwired 4G LTE Cat-1 vehicle GPS tracker for fleet, rental and automotive-finance applications. It combines GPS/BDS/GLONASS positioning with Wi-Fi/LBS assistance, ACC detection, geofencing, alarms, blind-spot data supplementation and remote fuel/power cut-off.

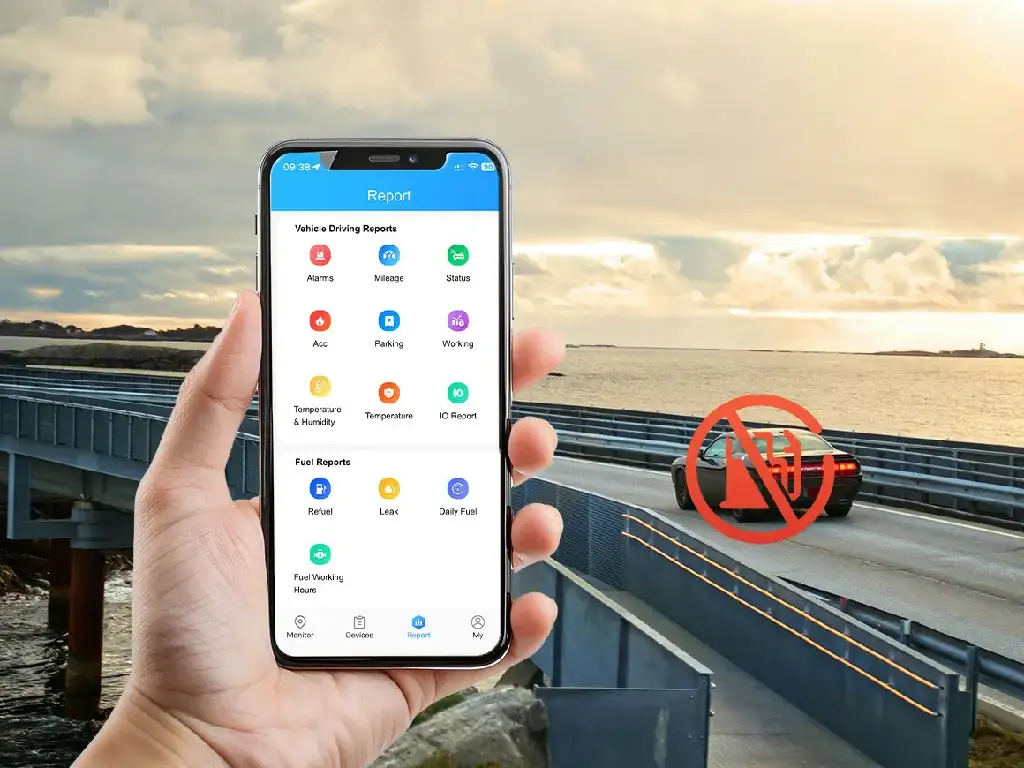

Fuel / Power Cut-Off

Remote cut-off commands can be issued through the compatible platform or SMS for anti-theft and risk-control scenarios. Safe deployment should follow project rules and only execute immobilization when vehicle conditions allow it.

Multi-Band Connectivity & Multi-Mode Positioning

4G LTE Cat-1 connectivity is paired with GPS, Beidou and GLONASS satellite positioning plus Wi-Fi and LBS assistance. The combination improves location availability across outdoor, urban and partially obstructed environments.

GT24N multi-band network and multi-mode positioning

GT24N vehicle finance rental and logistics applications

Wide Application Scenarios

Geofencing, ACC detection, overspeed alerts, vibration/displacement alarms and remote control make GT24N suitable for automotive finance, rental fleets and logistics operations that require continuous vehicle visibility and risk control.

Technical Specifications

Specification	Details
Network	4G LTE Cat-1
Working Voltage	DC 9V–90V
Positioning	GPS + BDS + GLONASS + Wi-Fi + LBS
Location Accuracy	≤10m under suitable GNSS conditions
Built-in Battery	55mAh / 3.7V industrial-grade lithium polymer
SMS	VoLTE short message service
GPS Antenna	Built-in 25 × 25 × 4mm ceramic antenna
Device Memory	2+2MB
Blind Spot Data Supplement	Up to 700 entries per platform
Working Temperature	-10°C to +70°C (14°F to 158°F)

Main Features

Wide Voltage Operation

Real-Time Positioning

Vibration Alarm

Blind Spot Data Storage

Remote Cut-Off

GT24N 4G Hardwired GPS Tracker Applicable Scenarios

Automotive Finance

Vehicle Rental Industry

Logistics & Transportation

Bulk 4G GPS Tracker Devices Ready-to-Ship

GreatWill supplies GT24N hardwired 4G trackers for fleet, rental and automotive-finance projects, with OEM/ODM customization for regional networks and platform integrations.

Positioning accuracy varies with antenna shielding, tall buildings, tunnels, weather and satellite visibility. Install the device where the ceramic antenna is not heavily obstructed and enable available GPS/BDS/GLONASS plus Wi-Fi/LBS assistance for better location continuity.

Confirm that the tracker is online, the command format and wiring are correct, and the vehicle meets the configured safe-control conditions. Immobilization should only be executed at a safe low speed or when stationary according to the project policy.

The original GT24N specification table lists a working range of -10°C to +70°C. Install the tracker away from excessive heat sources, direct heat buildup and locations outside the specified operating environment.

Check that the corresponding alarm is enabled and that its arming conditions are satisfied. ACC state, sleep/parking duration, movement threshold and sensitivity settings can all affect when an alarm is generated.

The DC 9V–90V input range covers many passenger, commercial and new-energy vehicle electrical systems. Final wiring and compatibility should be confirmed against the target vehicle and installation requirements.
