Magnetic Asset Tracking with Ultra-Long Battery Life — GAT12
GAT12 is a 4G LTE Cat-1 magnetic asset tracker with a 9600mAh Li-MnO₂ battery, GPS/BDS/LBS/Wi-Fi positioning, light-sensor tamper detection and IPX7 protection for valuable assets, containers and equipment.

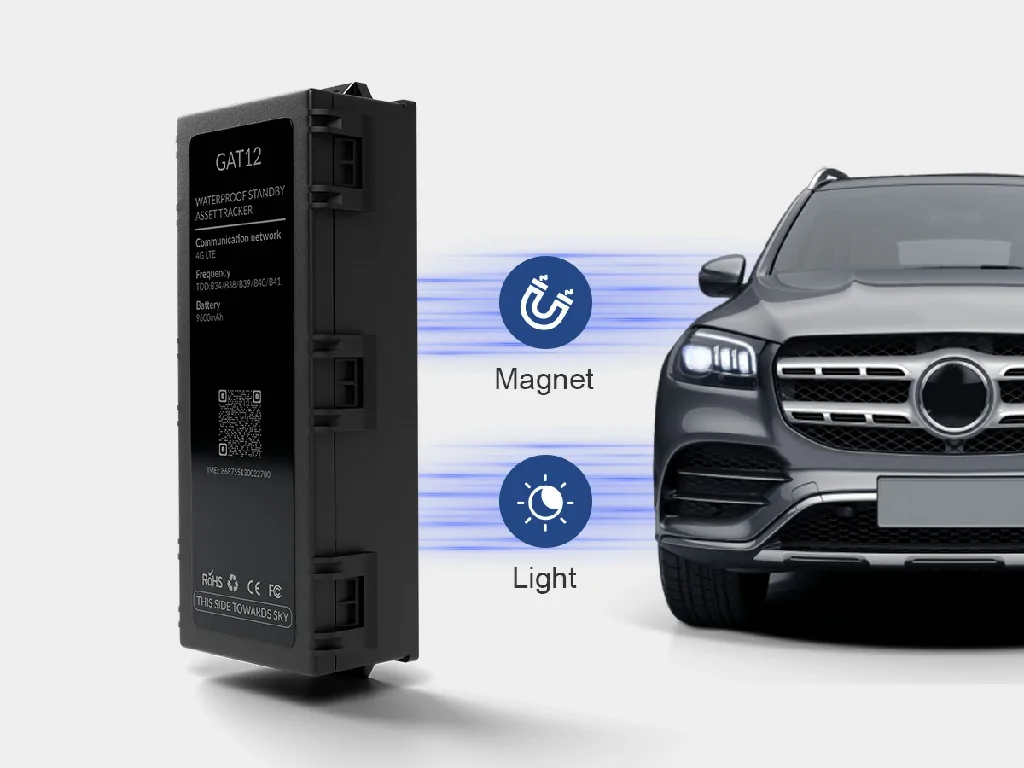

Light-Sensing Anti-Tamper Alarm
A built-in light sensor can detect unexpected exposure when the tracker is removed or opened, helping generate tamper alerts for protected assets and equipment.
Simple On/Off Control
The physical power button simplifies startup and shutdown for deployment, storage and maintenance without requiring additional tools.
Machinery & Engineering Vehicle Tracking
Long battery life, magnetic installation and IPX7 protection support location monitoring for construction machinery, engineering equipment and other outdoor assets.
Container-Specific Adaptation
The magnetic body can be installed quickly without drilling or wiring. Multi-mode positioning and long standby help maintain traceability through transportation and storage workflows.
Technical Specifications
| Specification | GAT12 |
|---|---|
| Network | 4G LTE Cat-1 |
| Battery | 9600mAh Li-MnO₂ |
| Dimensions | 113.8mm × 50.6mm × 30.6mm |
| Location Accuracy | <10 Meters |
| Positioning | GPS + BDS + LBS + Wi-Fi |
| Standby Current | <3µA |
| Battery Life | Up to 8 years at 1 location report/day |
| Working Temperature | -20°C to +70°C |
| Ingress Protection | IPX7 |
| Data Buffering | 1000 entries |
| Weight | 219g |
Main Features
Real-Time Tracking
9600mAh Battery
Light-Sensor Tamper Alert
IPX7 Protection
Magnetic Installation
GAT12 Applicable Scenarios
Valuables Management
Fixed Asset Management
Automotive Finance Risk Control
Bulk Asset Trackers Ready-to-Ship
GreatWill supplies GAT12 long-standby magnetic trackers for asset, container and equipment projects with OEM/ODM support.
