Name: TR09 Reliable 2G OBD GPS Tracker OEM Factory for Fleets
Brand: GreatWill

2G OBD GPS Tracker TR09 | GreatWill

Wholesale TR09 2G OBD GPS Tracker with OBDII interface, stable GSM 850/900/1800/1900MHz quad-band for global use. Supports real-time tracking, track playback, multi-alarm functions, and wide vehicle compatibility.

Plug-and-play OBDII port, 10-second installation, no wiring

GPS+LBS dual-mode positioning, high accuracy

Real-time tracking & historical route playback

Geofence, overspeed, vibration, power-off alarm

6V-50V for cars, taxis, trucks, fleets

Have questions? We're here to help.

Plug-and-Play 2G OBD Vehicle Tracking — TR09

TR09 is a compact 2G OBD GPS tracker designed for simple vehicle installation without rewiring. It provides GPS/LBS positioning, route playback, configurable reporting and vehicle-security alerts for private cars, taxis, rental fleets and commercial vehicle management.

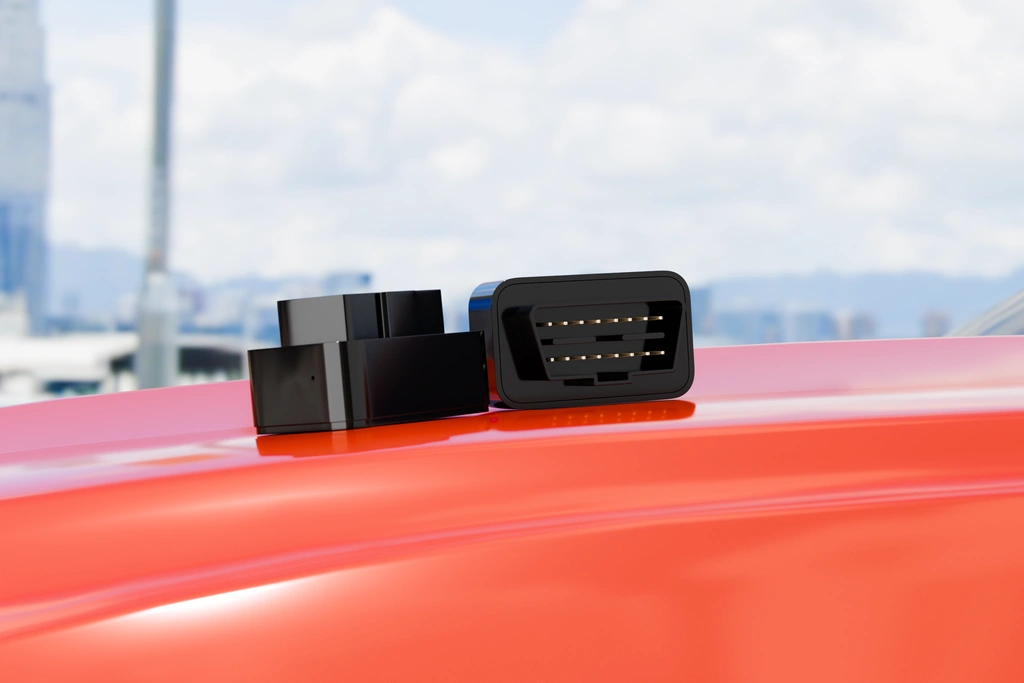

Compact In-Vehicle Positioning

TR09 plugs into the vehicle OBD interface and starts working when powered. Its compact form avoids separate wiring and makes deployment straightforward across compatible vehicles.

Stable 2G Signal Coverage & Certification

Quad-band GSM connectivity supports 850/900/1800/1900MHz networks for compatible 2G regions. The original product content lists CE and RoHS compliance for the device.

TR09 2G signal coverage and certification

TR09 UBLOX7020 GPS chipset and positioning

GPS + LBS Vehicle Tracking

The GPS chipset provides real-time location data, while LBS can assist when satellite reception is limited. The platform can support historical route review for vehicle movement and fleet-operation analysis.

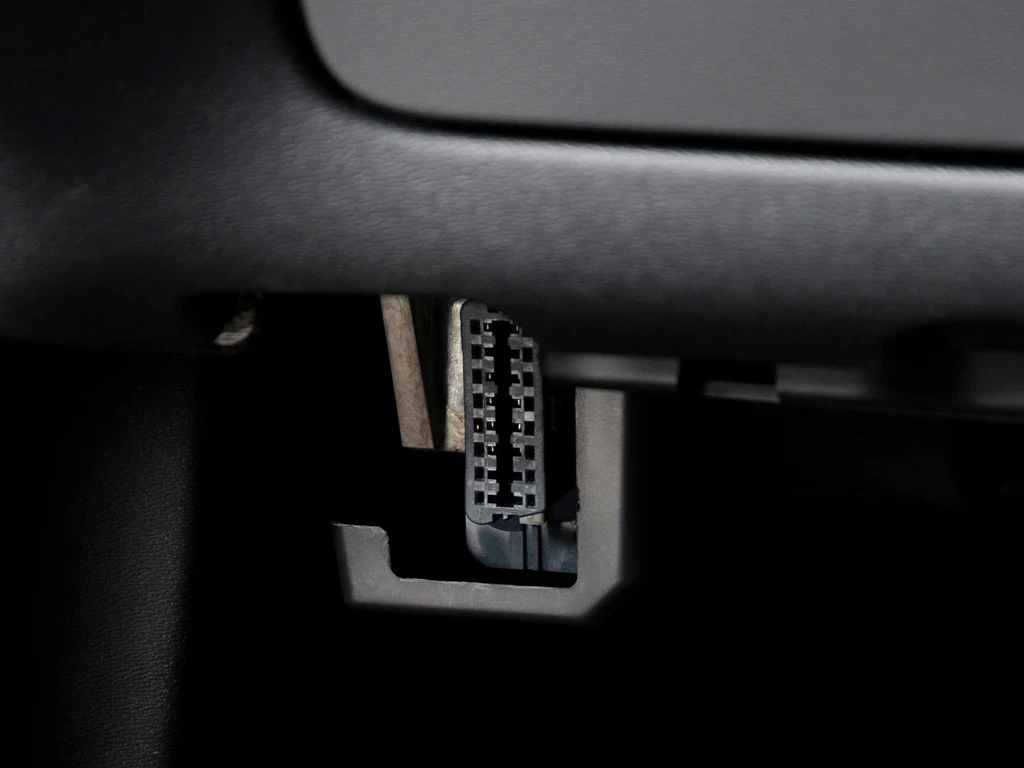

Plug & Play OBD II

The universal OBDII-style connection is designed for quick installation without splicing the vehicle power harness. This reduces deployment time for fleets, rental vehicles and private-car anti-theft projects.

Technical Specifications

Specification	Details
Connectivity	GSM 850/900/1800/1900MHz, GPRS Class 12, TCP/IP
Chipset	GSM: MTK 6252 / GPS: UBLOX7020
GPS Accuracy	10 meters (2D RM)
GPS Sensitivity	-159dBm
Voltage Range	DC 6V–50V
Operating Temperature	-20°C to +70°C
Dimensions	71 × 49 × 23mm
Weight	53g (main unit)

Main Features

AGPS Fast Positioning

Power Cut & Vibration Alarms

Adjustable Upload Intervals

Remote Voice Monitoring

TR09 OBD GPS Tracker Applicable Scenarios

Private Car Anti-Theft & Security

TR09 taxi and ride-hailing fleet tracking

Taxi & Ride-Hailing Fleets

Car Rental & Leasing

Bulk OBD GPS Trackers Ready-to-Ship

GreatWill supplies TR09 plug-and-play OBD GPS trackers for private vehicles, taxis, rental fleets and commercial projects, with OEM/ODM customization and compatible tracking-platform integration available.

After-sales technical support and product testing are available.
Configurations can be adjusted for local networks, vehicles and project requirements.
Warranty coverage can be up to 3 years depending on the project and commercial agreement.

Sample delivery is typically about 3–5 days.
Large-volume orders generally require more than 7 days depending on quantity and customization.
Devices and platform configurations are inspected before shipment.
Multiple shipping methods are supported.

Plug-and-play OBD installation reduces wiring and deployment time.
Vehicle-powered operation supports continuous tracking on compatible vehicles.
GPS/LBS positioning and security alerts help monitor location and unauthorized activity.
The compact format suits private cars, taxis, rental vehicles and commercial fleets.
