Ultra-Light GPS Pet Tracker OEM Solution for Pet Brands
Bluetooth Pet Finder · WiFi Positioning · IP67 Waterproof — lightweight enough for cats dogs pets, ready for your brand.
Full-Dimensional Customization Services
Sub-38g Ultralight
Comfortable enough for a 2kg cat. 40% lighter than typical 4G trackers — collar opition, no resistance.
BLE Pet Finder
Direction distance in the App, plus ringtone & flashing LED. Works indoors — where GPS can’t.
WiFi Positioning
Falls back to WiFi fingerprinting indoors and in urban canyons where GPS fades.
IP67 Waterproof
Rain, mud, splashes, and the occasional water bowl. Sealed as a single unit — no exposed glue lines.
Smart Low-Power Design
BLE always-on at micro-amp level. GPS wakes on demand. Small battery, long battery life.15 days BLE mode.
OEM/ODM Ready
Your logo, your App, your packaging. Launch under your brand with R&D investment.MOQ 200.
Small Pet GPS Tracker Lineup — Pick Your Entry
Whatever your team’s design capability, there is an entry point that fits — and every option carries the same core: BLE finder WiFi positioning IP67.
GTP10
The complete mini tracker — find pets anywhere, indoors to outdoors.

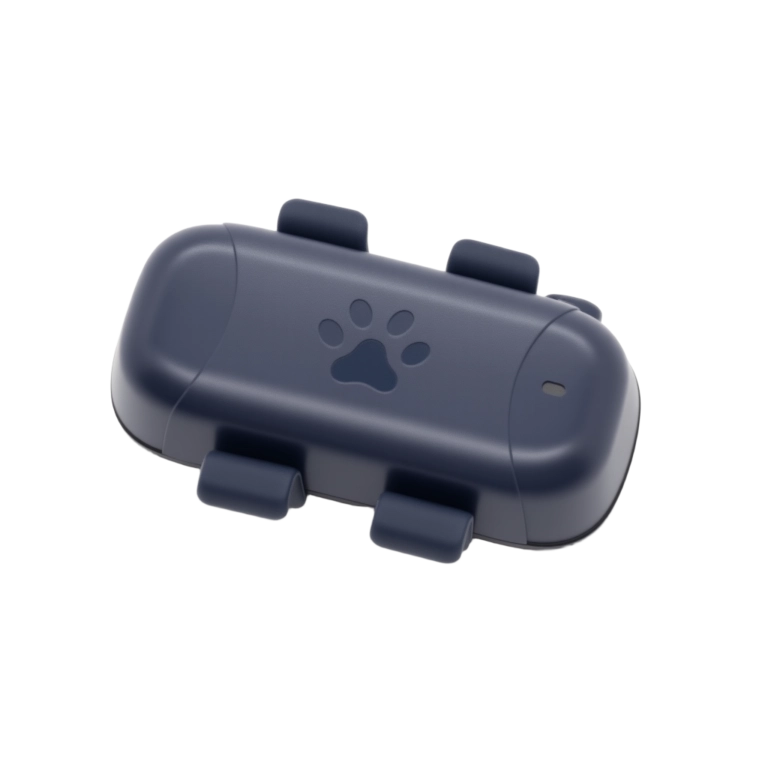

GTP11
Adds health & temperature alerts — a premium upsell for your line.
OEM
Don’t want our enclosure? Integrate the module into your own design.
Engineering-grade Specs Technical Team
Every parameter below is what your procurement and engineering teams will be held accountable for. Model numbers are customizable via OEM.
| Parameter | GTP-4G Network Series |
|---|---|
| Model | GTP10-Standard/ GTP11-Pro |
| Size | GTP10 : L63.5mm*W38mm*H18.5mm GTP11 : L64mm*W34mm*H23mm |
| Weight | ≤ 37g-38g（collar attachment excluded） |
| Positioning | GPS BDS WiFi Positioning BLE — hybrid, auto handover |
| Outdoor accuracy | GPS/BDS<10m |
| WiFi Positioning | 10–50 m indoors / urban canyons — no extra subscription |
| BLE pet-finder | BLE 5.0 · range 20 m · direction & distance in App · optional LED/buzzer guide |
| Battery | 800mAh Li-polymer |
| Battery Life | Hybrid 5–10 days |
| Waterproof | IP67 — dust-tight, 1 m / 30 min immersion |
| Charging | Type-C |
| Operating temp | −25°C ~ 75 °C |
| Network / SIM Card | Network-unlocked · supports customer’s own SIM (4G NB-IoT / LTE-M configurable) |
| App | White-label iOS & Android — logo, colors, app name, multi-language |
| Platform | Open API SDK |
| OTA | Remotely Free firmware updates |
| Certifications | FCC / CE / RoHS / ISO 9001 |
| Warranty | 12 months |
| Packaging | Custom retail packaging, manual and collar options via OEM |
Three Buying Reasons Packaged For Your Consumers
Don’t just sell hardware. Each scenario below is a ready-made sales story: pain → solution → gain. Use them in your product listings, ads and packaging.
1
Lost cat / small dog
Pain
Pets go missing at home and in the neighborhood — but GPS dies indoors,and 50g GPS trackers are too heavy for cats and toy breeds, so owners just don’t put them on.
Solution
BLE finder (50 m direction guidance) WiFi indoor positioning as backup ≈38g weight your cat will actually wear.
Gain
Sell “find your pet indoors too” — a claim GPS-only competitors cannot make. Fewer “my pet won’t wear it” returns.
2
Indoor & urban-canyon positioning
Pain
In apartments, malls and city streets, GPS accuracy collapses to 200m — the map shows nothing useful.
Solution
WiFi positioning restores 10–50m accuracy indoors, auto-switching between GPS, WiFi and BLE.
Gain
Positioning success rate goes from “outdoors only” to all-day, everywhere — your sellable claim: always-on peace of mind.
3
Rainy Walks & Splash Play
Pain
Water damage is one of the top return reasons for pet trackers. Buyers hesitate when the weather turns.
Solution
IP67 full-body sealing with one-piece molding and ultrasonic welding — no exposed glue lines.
Gain
Sell with confidence in any climate, lower your after-sales cost and protect your brand’s rating.
Making it small is the hard part. We did it without cutting corners.
Any factory can shrink a PCB. The challenge is keeping antenna performance, battery life and sealing intact at 40% smaller size.
Hardware Engineering Bottlenecks
Antenna Performance Vs. Size
A GPS antenna needs physical volume. Shrink it carelessly and you lose sensitivity — the tracker can’t hear satellites in weak-signal spots.
Battery Capacity Vs. Volume
The battery is the biggest component. Go small and battery life typically collapses — For a device that must be worn 24/7.
Sealing vs. Footprint
IP67 needs structural seals, gaskets and assembly tolerance. Tighter size means less room for every sealing element — leak risk goes up.
GreatWill engineering Solution
High-sensitivity ceramic antenna optimized PCB layout keep positioning accuracy while cutting volume ~40%.
Low-power architecture: BLE always-on at micro-amp level; GPS wakes only on movement or geofence events. Battery life doesn’t collapse with size.
One-piece molding ultrasonic welding — IP67 with no exposed glue lines, tested before shipment.
Customization on demand: size, battery and housing color adjusted to your brand’s spec — including bare-module integration into your own hardware.
The sales logic behind BLE WiFi of GPS pet tracker
90% of escapes happen “nearby” — home, yard, a neighbor’s garden. That’s exactly where GPS fails and Bluetooth wins.
Zero monthly fee: BLE and WiFi modes need no SIM and no subscription. For you,pay once, no ongoing cost and no data-plan support burden.
Three-Tier Positioning Coverage
One device, three complementary positioning modes — auto-switching so there is always a signal that works.
Outdoor · Open sky
GPS BDS satellite positioning
Accuracy < 10 m
Indoor · Urban
WiFi fingerprint positioning
Accuracy 10–50 m · no fee
Nearby · 50 m
BLE pet-finder with direction guidance
Zero SIM · $0 monthly
Your brand, your app. Built by us, owned by you.
Deep hardware integration, fast updates, and complete customization can be achieved.
Real-time map tracking
Live location with history playback.
Geo-fence alerts
Instant push when your pet leaves a safe zone.
Multi-pet management
One account, unlimited pets, family sharing.
Health & activity (Pro)
Daily activity, sleep and temperature insights.
BLE finder screen
Distance direction radar with LED/buzzer guide.
White-label
Your logo, colors, app name, domain, multi-language.
Smaller, Smarter, Cheaper To Run
The mini category wins on the two columns buyers care about most: size and cost-per-month.
| Specification | GreatWill GTP10 (Mini) | Typical 4G tracker | Typical WiFi-only tag |
|---|---|---|---|
| Weight | ≈38 g | 40-50 g | 10–15 g |
| Indoor finding | BLE finder WiFi positioning | GPS only — blind indoors | Indoor only |
| Monthly fee | $0 (BLE/WiFi modes) | SIM data plan required | $0 |
| Waterproof | IP67 | IP65–IP67 varies | Varies |
| App | In-house white-label | Third-party / white-label varies | Third-party |
| Cat & small-dog fit | Yes — built for it | Too heavy | Yes, but limited range |
| MOQ | 200 units | 500–1,000 | 500 |

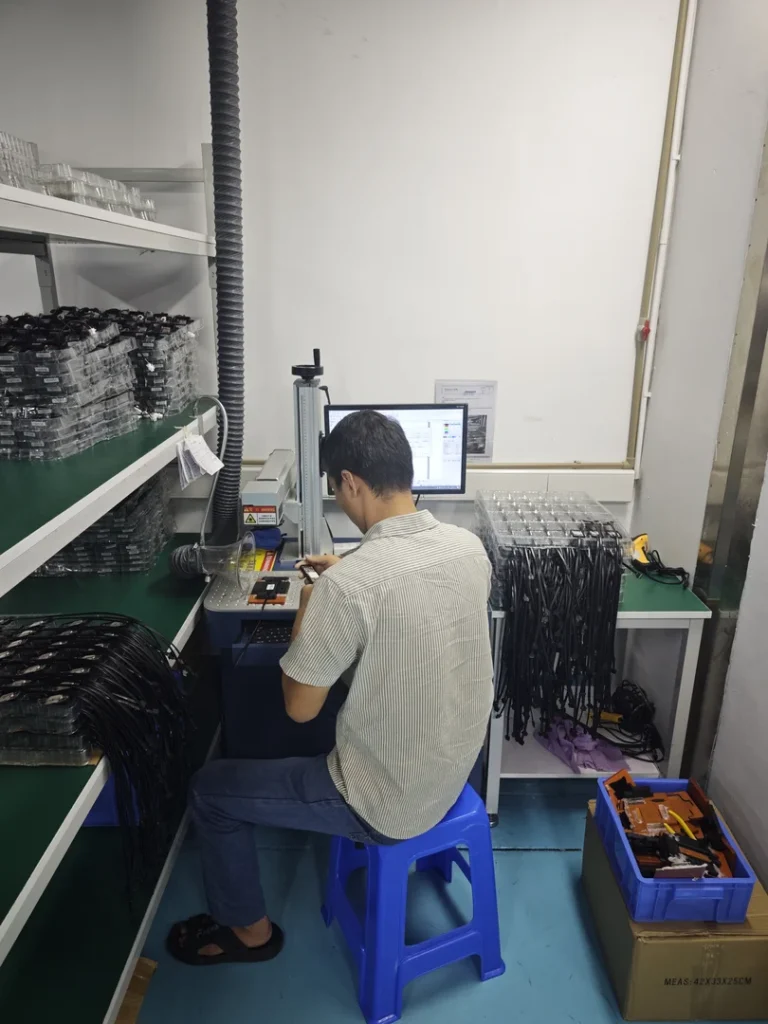

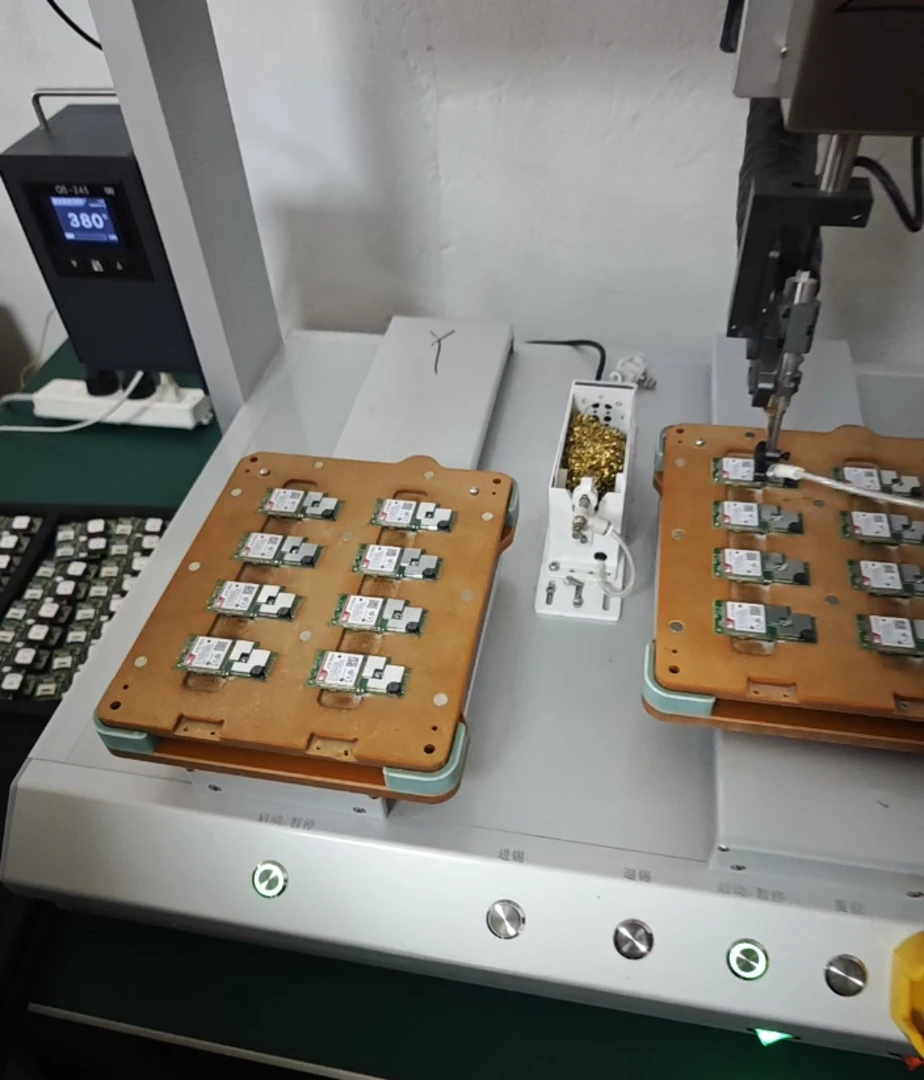

A Real Factory — With Numbers You Can Verify On a Visit
As a professional GPS manufacturer, the Mini Series operates on dedicated production lines equipped with antenna testing equipment for small-sized devices.
10,000㎡
Factory Floor
10 Lines
SMT Production Lines
20K Units
Monthly Capacity
10 Engineers
R&D Engineers
3-stage QC: Incoming → In-Line → Finished
Customization depth — from a logo to a fully new device
Tell us your vision and we’ll tell you exactly what’s possible, what it costs and how long it takes.
Brand customization
– Logo silk-printing & ID colorways
– Custom packaging, manual & accessories
– Private-label protection & regional exclusivity
Hardware customization
– Further size reduction (mini-ization projects)
– Battery capacity & sensor add/drop (health, temp)
– Housing material, mounting & collar options
Firmware & software
– Custom features & alert logic
– White-label App with your branding & domain
– Private server deployment, API/MQTT integration
Module & semi-kit
– Bare module / half-finished solutions
– Embed into collars, harnesses, carriers, other hardware
– Spec sheets & structural design advice included
Frequently Asked Questions
Ready to launch a mini GPS pet tracker line under your brand?
Send us your requirements and get a wholesale quote within 24 hours
with a recommended model or customization direction, not just a price.
